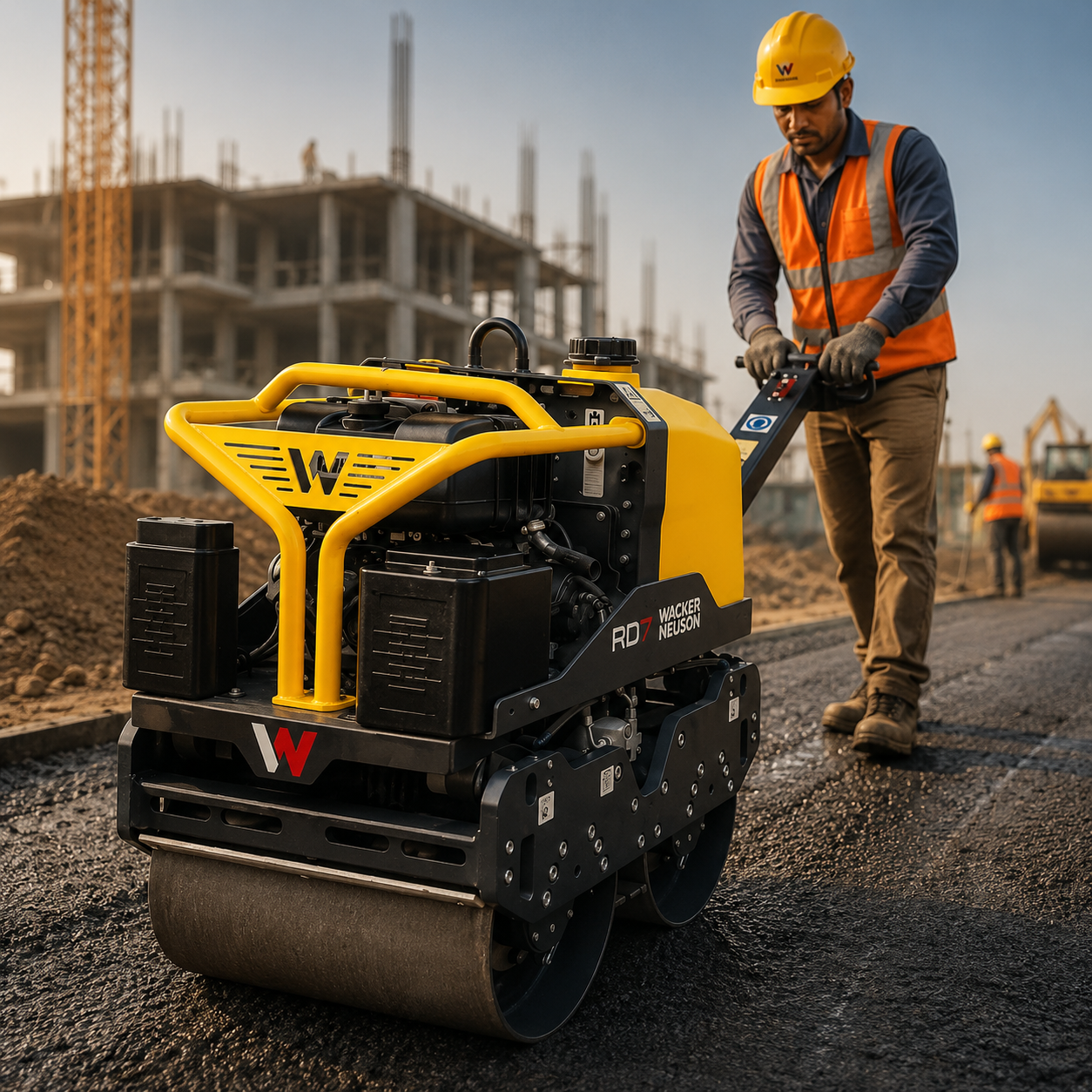

WACKER NEUSON WALK BEHIND ROLLER
AVIRAT WACKER NEUSON WALK BEHIND ROLLER is designed for efficient compaction of asphalt, soil, pathways, parking areas, road shoulders and construction surfaces. Its compact walk-behind design provides better control in confined and medium-sized working areas.
The machine features hydrostatic drive for both front and rear drums, two centrifugal-force levels and a maximum vibration frequency of 56 Hz. A 650 mm drum width, 33% gradeability and forward-reverse travel provide stable and productive compaction performance.
Powered by an air-cooled four-stroke diesel engine, the roller includes electric start, hydrostatic service braking, a centre-mounted exciter system and a durable steel frame with lifting hook. Its 60-litre water tank supports asphalt compaction by helping prevent material adhesion to the drums.
Reliable Double-Drum Compaction for Road and Construction Work
Built for controlled movement, consistent vibration and dependable surface finishing, this walk-behind roller combines easy operation with heavy-duty construction. It is suitable for contractors, roadwork teams and civil construction projects requiring uniform compaction in areas where larger rollers are difficult to operate.
WACKER NEUSON WALK BEHIND ROLLER
| Operating Weight (Water Filled Condition) | 784 kg | Operating Weight (Without Water) | 724 kg |
|---|---|---|---|
| L × W × H (Drawbar in Working Position) | 2494 × 720 × 1200 mm | L × W × H (Drawbar in Transport Position) | 1460 × 720 × 1990 mm |
| Overhang Left & Right | Up to 40 mm | Curb Clearance Left & Right | 225 mm |
| Centrifugal Force Level 1 | 13.7 kN | Centrifugal Force Level 2 | 20.4 kN |
| Travel Speed (Forward) | 4 km/hr | Travel Speed (Reverse) | 2.5 km/hr |
| Gradeability | 33% | Drum Width | 650 mm |
| Drum Diameter | 400 mm | Maximum Vibration Frequency | 56 Hz |
| Exciter System | Hydrostatic, Centre Mounted | Drive System | Hydrostatic for Front & Rear Drum |
| Frame | Steel Frame with Lifting Hook | Service Brake | Hydrostatic |
| Engine Type | Air-Cooled, Four-Stroke Diesel Engine | Engine Make / Model | Kohler / KD 15-441 NE30 |
| Displacement | 441 cm³ | Rated Power Output | 5.2 kW at Operating RPM |
| Operating RPM | 2600 RPM | Maximum Power Output | 6.7 kW at Rated RPM |
| Rated RPM | 3000 RPM | Electric Start | Yes |
| Fuel Tank Capacity | 5 Litres | Hydraulic Oil Capacity | 5 Litres |
| Water Tank Capacity | 60 Litres | Application | Asphalt, Soil and Surface Compaction |
Frequently Asked Questions
It is used for compacting asphalt, soil, pathways, road shoulders, parking areas, repair patches and construction surfaces where controlled operation and uniform compaction are required.
The operating weight is 724 kg without water and 784 kg when the water system is filled, providing stable drum contact during compaction work.
The machine uses a Kohler KD 15-441 NE30 air-cooled, four-stroke diesel engine with 441 cm³ displacement and electric starting.
The roller provides two centrifugal-force settings: 13.7 kN at level one and 20.4 kN at level two, allowing the operator to match the vibration force to the surface condition.
Yes. It travels forward at up to 4 km/hr and in reverse at up to 2.5 km/hr through a hydrostatic drive system for the front and rear drums.
The water tank supports wetting of the drums during asphalt compaction, helping reduce hot asphalt adhesion and supporting a cleaner, more consistent surface finish.
