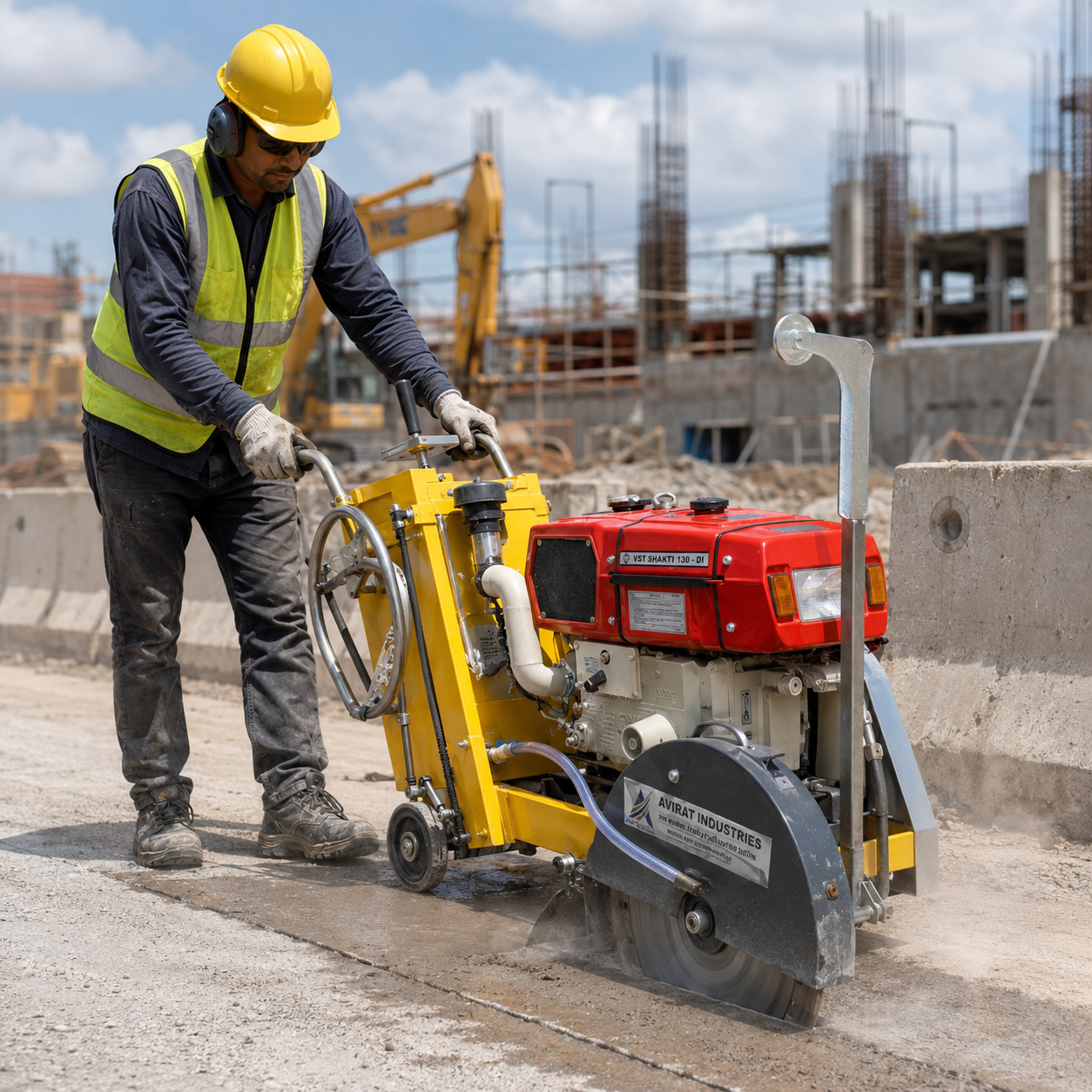

Concrete RCC Asphalt Groove Cutter Machine
AVIRAT Concrete – RCC – Asphalt Groove Cutter Machine is engineered for precise and efficient groove cutting in concrete, RCC and asphalt surfaces. Model AIOTGC13VST is suitable for roadwork, flooring, expansion joints, repair work and infrastructure construction.
Powered by a VST SHAKTI 130 DI diesel engine, the machine delivers 13 HP at 2400 RPM with 709 CC displacement. It supports cutting blades from 350 mm to 600 mm and achieves a maximum cutting depth of 200 mm through two-step cutting work.
Heavy-duty bearings, ISI-grade steel, an anti-vibration engine mounting plate, screw-feed blade adjustment and forward-reverse chain-wheel movement provide reliable operation. Proper belt guards and a 50-litre water tank improve safety and cutting performance.
Powerful Groove Cutting for Concrete, RCC and Asphalt Surfaces
Designed for demanding construction and road-cutting applications, this machine offers controlled cutting depth, smooth movement and stable performance. Its rugged build, easy blade-height adjustment and dependable diesel engine help contractors complete accurate cuts with reduced effort and consistent results.
CONCRETE RCC ASPHALT GROOVE CUTTER MACHINE
| Model | AIOTGC13VST | Engine | VST SHAKTI 130 DI |
|---|---|---|---|
| Power | 13 HP | Rated Revolution | 2400 RPM |
| Displacement Power | 709 CC | Engine Fuel | Diesel Only |
| Fuel Consumption | 245 g/kW-hr | Maximum Cutting Depth | 200 mm (8") with 2-step cutting work |
| Suitable Cutting Blade | 350 mm (14") to 600 mm (24") | Water Tank Capacity | 50 Litres |
| Bearings | Heavy-duty housing with triple-lip seal and high-temperature bearing | Steel | ISI-grade steel |
| Engine Mounting | Anti-vibration engine mount base plate | Tyre Size | 8" × 2" solid rubber tyre with heavy cast-iron hub |
| Height Adjustment | Screw-feed blade lifting system | Machine Movement | Forward and reverse with 5/8" chain-wheel drive and steering wheel lock |
| User Safety | V-belt and cutting-belt guards | Colour & Finish | Yellow / Grey / Black with polyurethane auto-coat |
| Weight | 265 Kg | Application | Concrete, RCC and Asphalt Groove Cutting |
Frequently Asked Questions
This machine is used for cutting accurate grooves in concrete, RCC and asphalt surfaces for roadwork, expansion joints, flooring, repair work, cable routes and infrastructure projects.
The machine can cut up to 200 mm (8 inches) deep with two-step cutting work and supports cutting blades from 350 mm (14 inches) to 600 mm (24 inches).
Model AIOTGC13VST is powered by a VST SHAKTI 130 DI diesel engine that delivers 13 HP at 2400 RPM with a displacement of 709 CC.
Cutting depth is controlled through a screw-feed height-adjustment system that moves the cutting blade up and down smoothly for accurate and controlled cutting.
The machine uses ISI-grade steel, premium heavy-duty bearings, an anti-vibration engine mounting plate, solid rubber tyres and properly fitted V-belt and cutting-belt guards for dependable and safer operation.
The machine provides forward and reverse movement through a 5/8-inch chain-wheel drive. A heavy-duty steering wheel lock helps maintain control and stability during cutting work.
