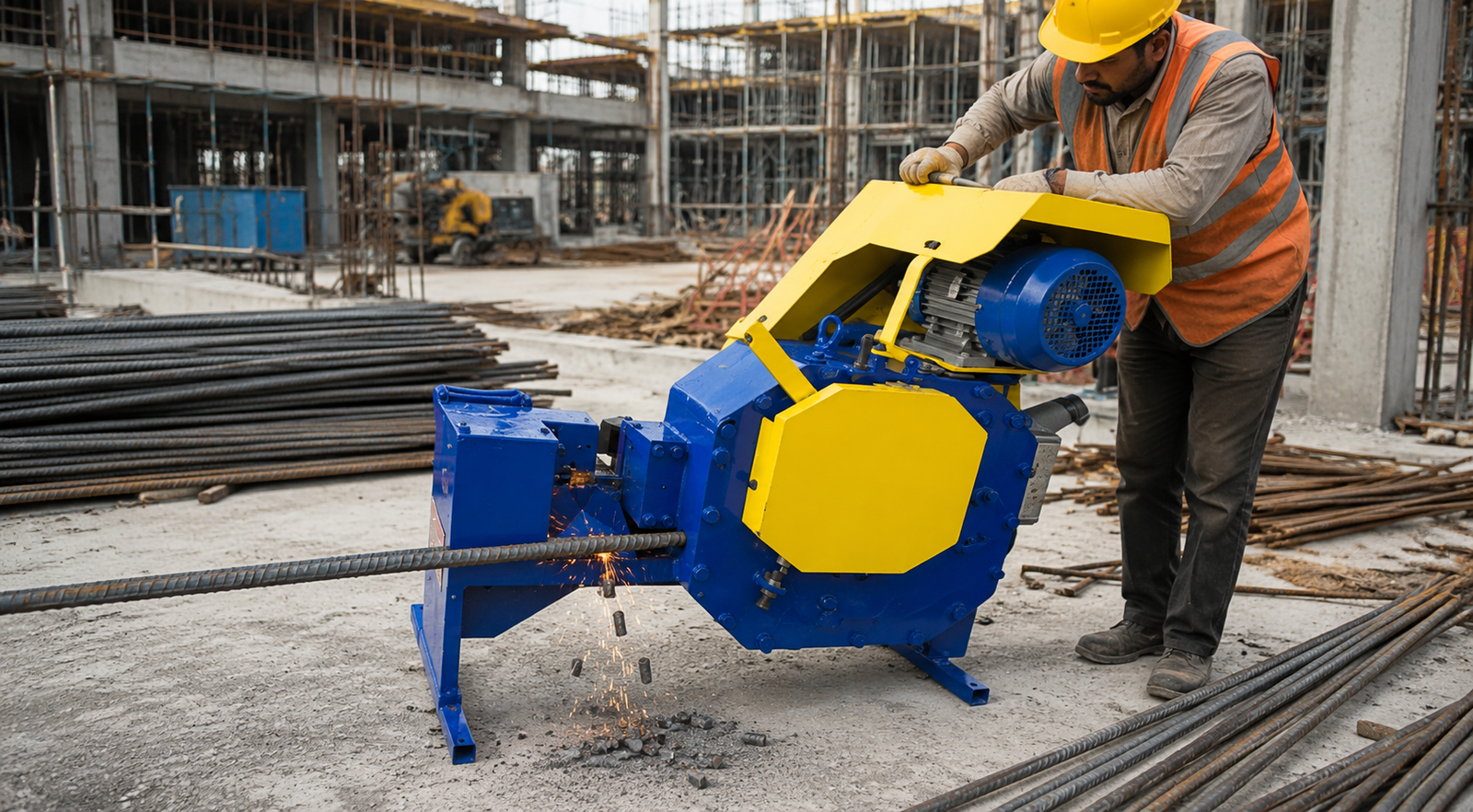

Bar Cutting Machine AIC-45
AVIRAT Bar Cutting Machine AIC-45 is engineered for fast and precise cutting of reinforcement bars. It is suitable for construction sites, fabrication workshops and infrastructure projects.
The machine cuts reinforcement bars up to 32 mm capacity. It is powered by a 5 HP, 3 Phase motor operating at 2880 RPM and includes a Venex Digital Starter for dependable performance.
Its rugged construction, reliable cutting output and low-maintenance design make it an ideal solution for continuous and heavy-duty reinforcement bar cutting work.
Efficient Bar Cutting for Construction Projects
Designed for speed, durability and accuracy, this machine helps improve workflow on construction sites. It is a practical solution for contractors who need reliable bar cutting performance with less labour dependency and better time savings.
BAR CUTTING MACHINE AIC-45
| Model | AIC-45 | RPM | 2880 RPM |
|---|---|---|---|
| Motor Power | 5 HP / 3 Phase / 2880 RPM | Weight | 425 Kgs Approx |
| Capacity | Up to 32 mm | Starter | Venex Digital Starter |
| Bars Diameter in mm | 40 | 36 | 32 | 25 | 20 | 16 | 12 | 10 | 8 | ||
| No. of Bars - FE 500 (50Kg/mm2) |
40mm: ... | 36mm: 1 | 32mm: 1 | 25mm: 1 | 20mm: 1 | 16mm: 2 | 12mm: 3 | 10mm: 4 | 8mm: 5 | ||
| No. of Bars - FE 500D (60Kg/mm2) |
40mm: ... | 36mm: ... | 32mm: 1 | 25mm: 1 | 20mm: 1 | 16mm: 2 | 12mm: 3 | 10mm: 3 | 8mm: 4 | ||
| No. of Bars - FE 550D (70Kg/mm2) / FE 600 |
40mm: ... | 36mm: ... | 32mm: ... | 25mm: ... | 20mm: 1 | 16mm: 2 | 12mm: 3 | 10mm: 3 | 8mm: 4 | ||
| No. of Bars - FE 500S (78Kg/mm2) |
40mm: ... | 36mm: ... | 32mm: ... | 25mm: ... | 20mm: 1 | 16mm: 2 | 12mm: 3 | 10mm: 3 | 8mm: 4 | ||
Frequently Asked Questions
Bar Cutting Machine AIC-45 is used for cutting TMT bars, reinforcement steel bars and required bar sizes for construction, fabrication, RCC and infrastructure work.
The Bar Cutting Machine AIC-45 is suitable for cutting reinforcement bars up to 32 mm, making it useful for medium to heavy-duty construction and fabrication applications.
Yes, this machine is suitable for residential, commercial and industrial construction sites, including RCC work, bridges, roads, flyovers and infrastructure projects.
This machine comes with a 5 HP, 3 Phase motor with 2880 RPM, providing smooth, stable and powerful performance for regular bar cutting work.
The main features include accurate cutting output, heavy-duty body, quick bar processing, easy controls, stable machine base, low-maintenance design and reliable site performance.
This machine is useful for contractors, builders, civil engineers, steel yards, fabrication workshops, precast concrete units and reinforcement preparation work.
